Automated Veterinary Medicine Packaging Line with Foam Box & Carton Integration
Process Flow
Applications
Veterinary Products
Liquid veterinary medicine bottles
Plastic veterinary vaccine bottles
Powder veterinary medicine containers
Temperature-sensitive animal health products
Packaging Formats
Bottles inside protective foam boxes
Foam boxes packed in outer corrugated cartons
Palletized secondary packaging bundles
Bottle Type

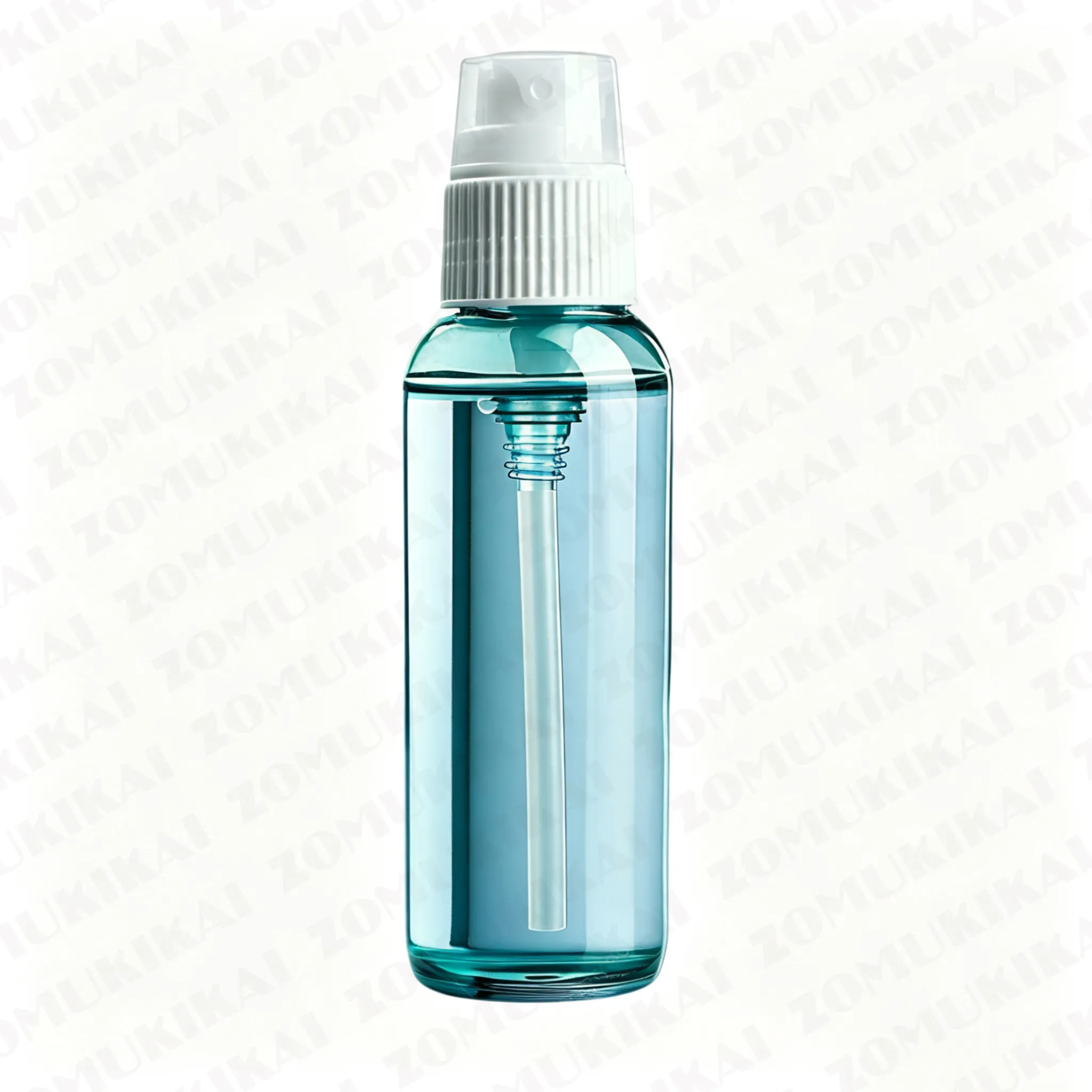

Aerosol Bottle

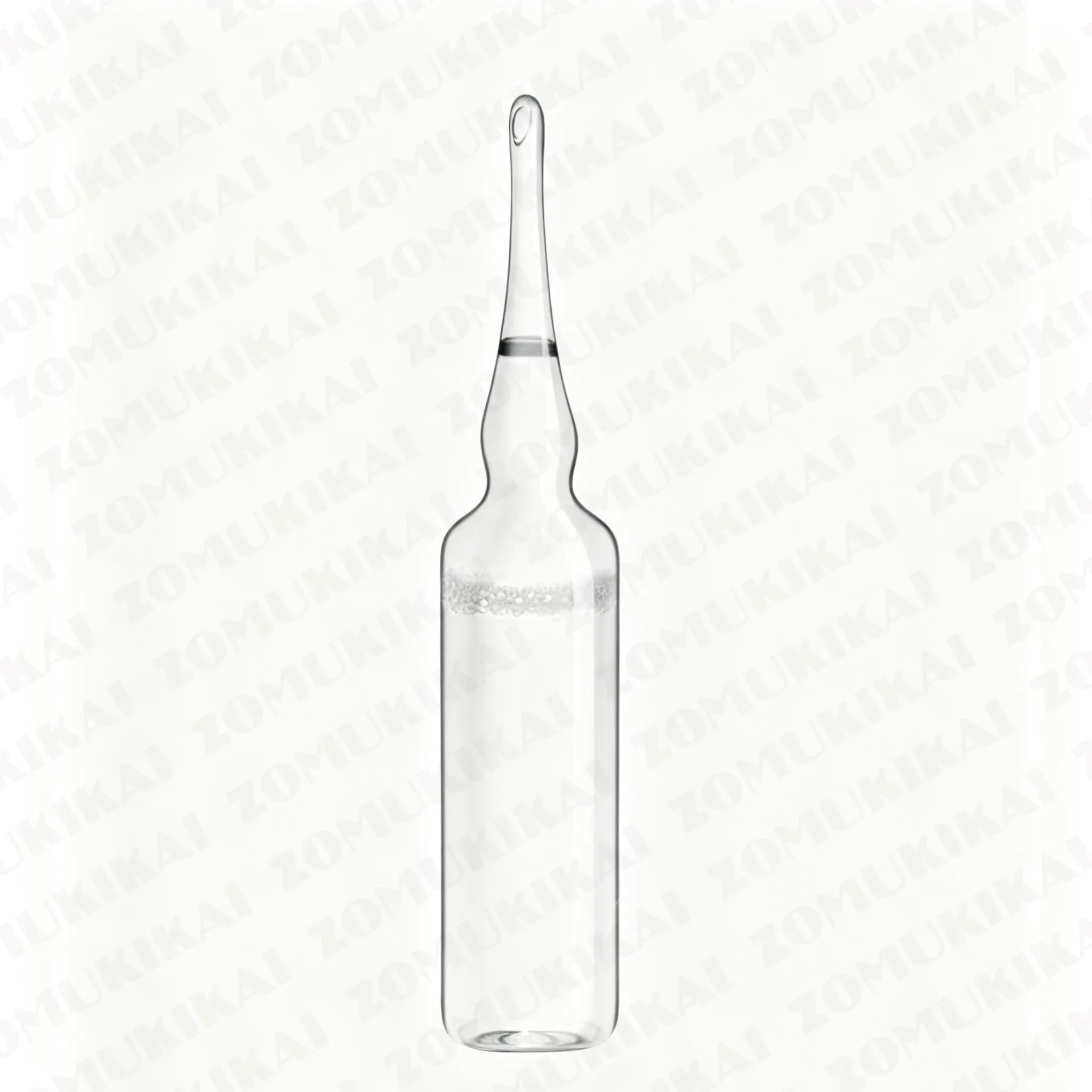

Ampoule Bottle

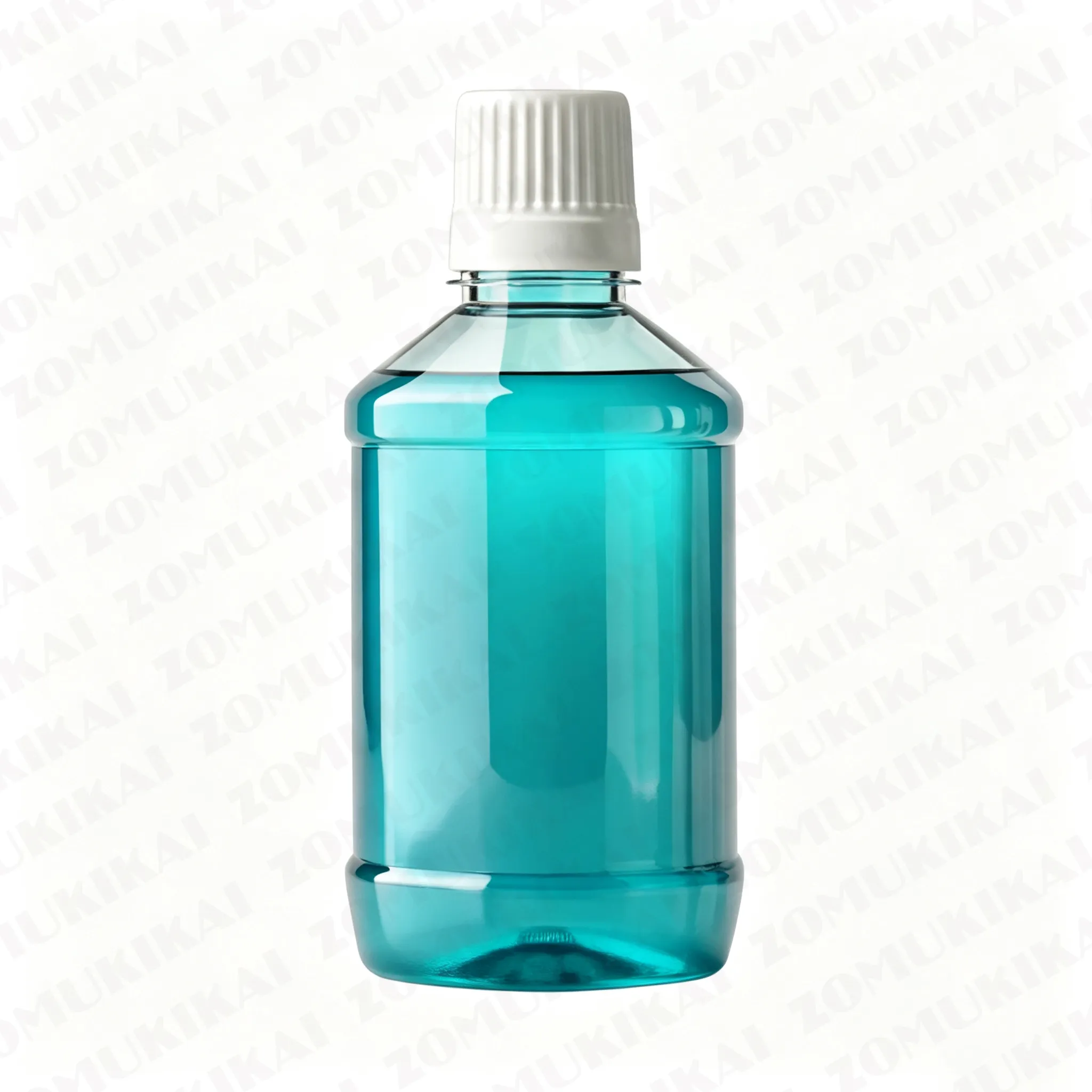

Syrup Bottle

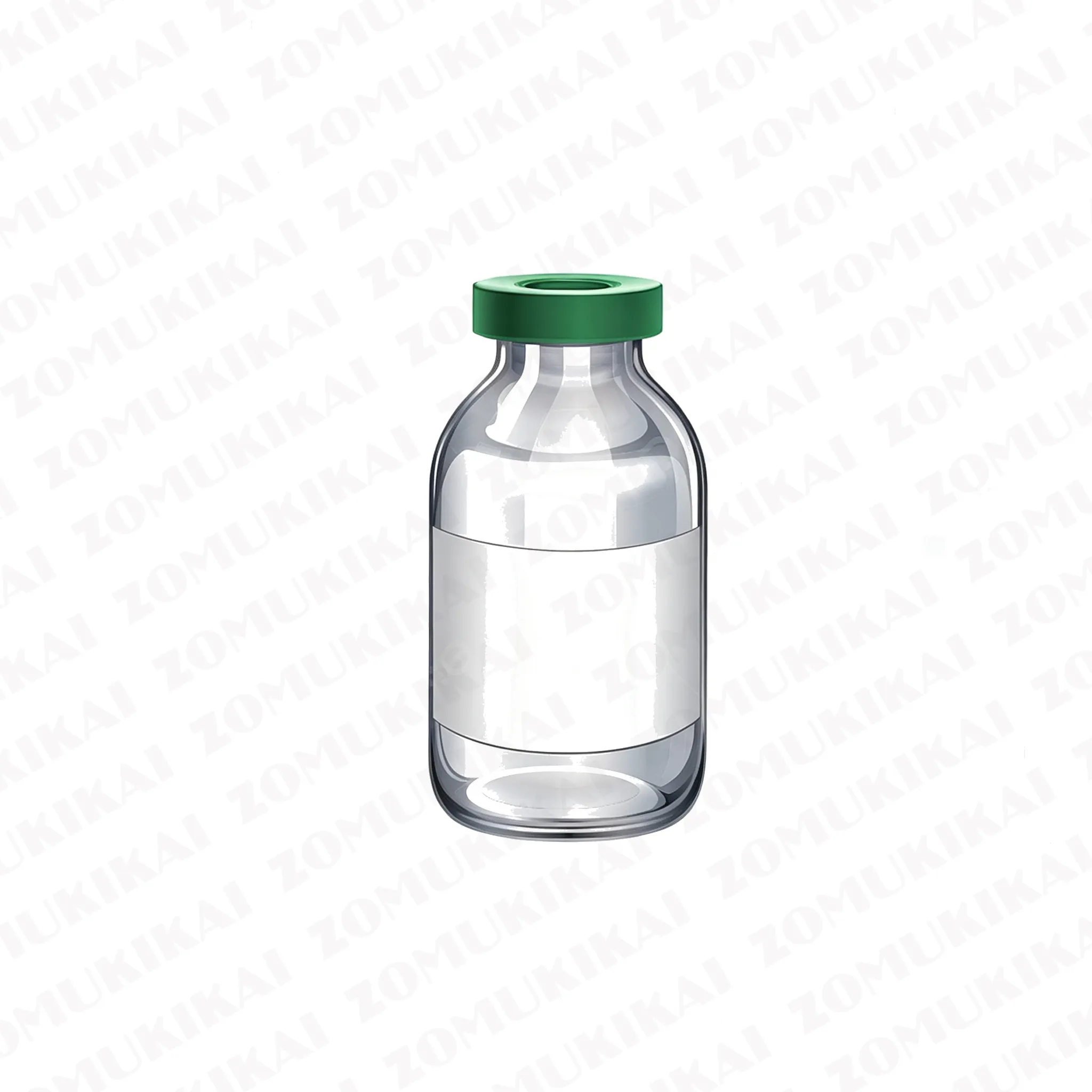

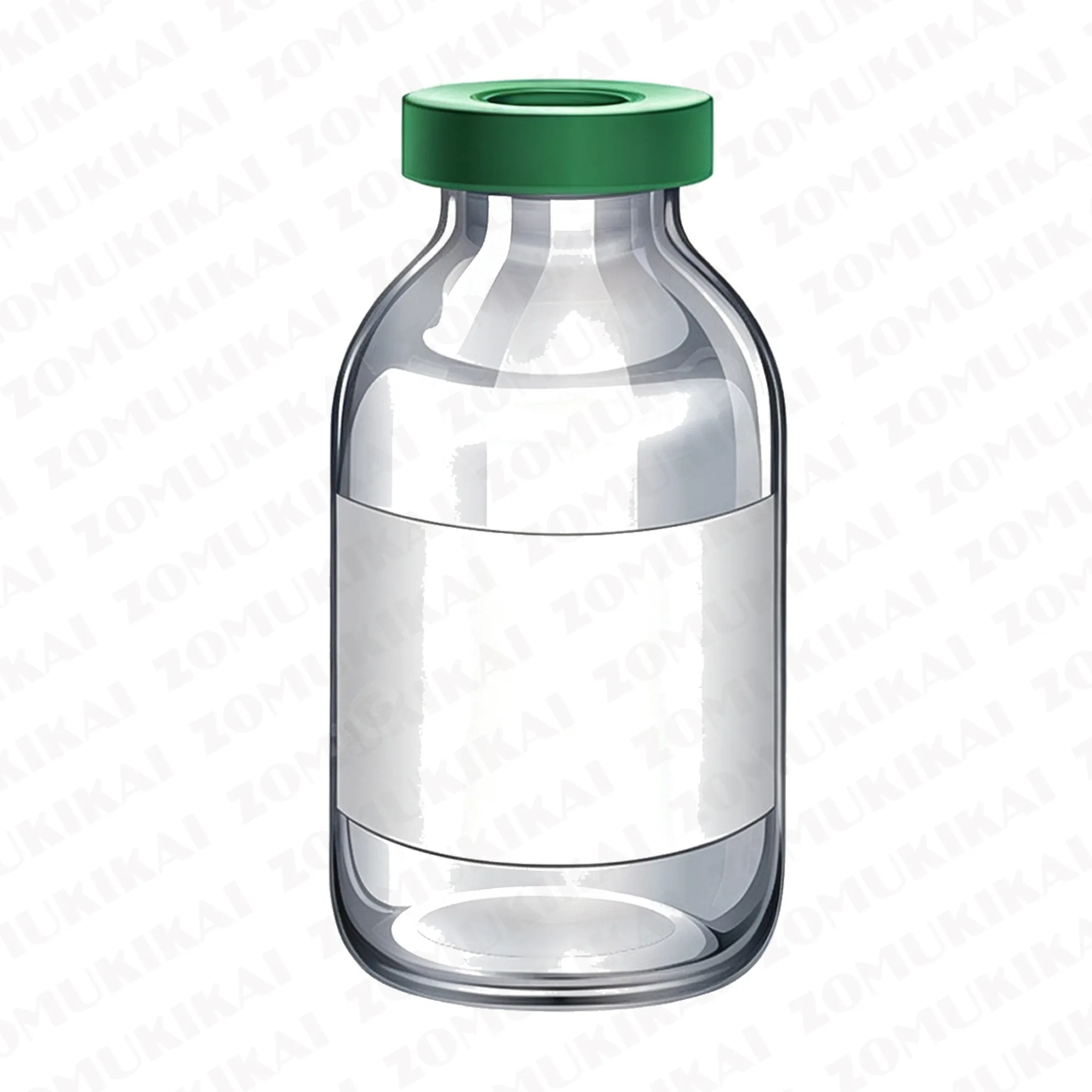

Vial Bottle

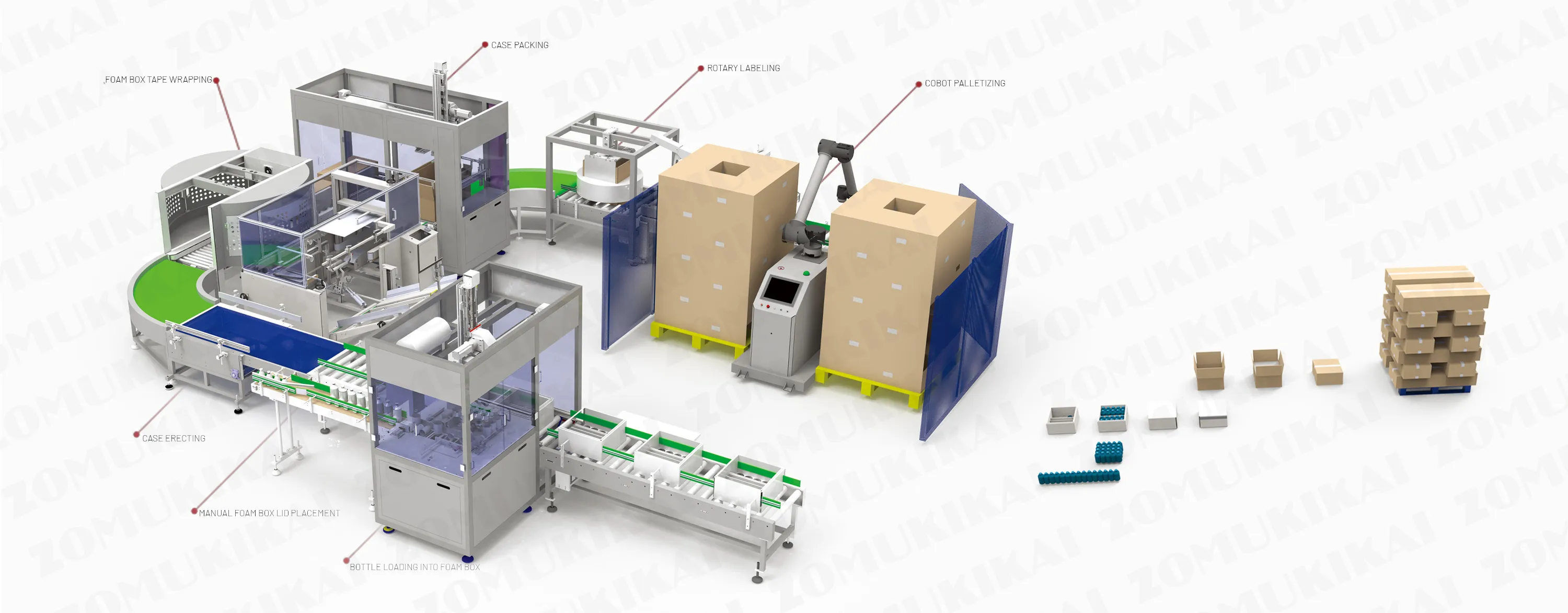

How the Veterinary Medicine Packaging Line Works
This automated packaging system is engineered to handle veterinary medicine bottles with specialized care, addressing unique temperature control requirements, physical deformation prevention, and safe shipping standards.
The process begins with filled plastic veterinary medicine bottles. A bottle-tilting device lays the bottles flat onto the conveyor belt. A specialized picking mechanism grips the bottle bodies and inserts them precisely into custom foam boxes designed for thermal insulation and impact protection.
After manual lid placement for the foam box (a space-saving design choice, though fully automated lid-placers are available for unrestricted layouts), the foam box is transferred to a horizontal stretch wrapping machine to securely seal the box.
Concurrently, an automatic case erector forms and bottom-seals corrugated shipping cartons. Using a sponge-cup vacuum gripping case packer, the sealed foam boxes are automatically loaded into the outer corrugated cartons according to preset configurations, followed by automatic top sealing.
Finally, the finished outer cartons are transferred to a collaborative robot (cobot) palletizing station, where the cobot safely and neatly stacks the cartons onto pallets for secure storage and logistics distribution.
The comprehensive layout is tailored to optimize factory space while delivering high reliability, minimizing manual labor, and ensuring product safety throughout the cold-chain and distribution process.
Packing Line Configuration
Complete equipment configuration of the automated veterinary medicine packaging line:
| Section | Equipment | Main Function |
|---|---|---|
| Bottle Preparation | Bottle Tilting Device & Conveyor | Positions filled plastic bottles horizontally for safe handling |
| Inner Packaging | Foam Box Insertion Machine | Automatically grips and loads bottles into protective foam boxes |
| Inner Sealing | Horizontal Stretch Wrapping Machine | Wraps and securely seals the foam boxes horizontally |
| Case Preparation | Automatic Case Erector | Forms corrugated shipping cartons and seals bottom flaps |
| Secondary Packing | Sponge-Cup Vacuum Gripping Case Packer | Transfers sealed foam boxes safely into outer shipping cartons |
| Case Sealing | Automatic Case Sealer | Seals outer cartons securely for transport |
| Palletizing | Collaborative Robot Palletizing System | Stacks finished outer cartons neatly onto pallets |
Key Features and Protection Standards
Veterinary pharmaceuticals demand rigorous protection against impact, stacking pressure, and temperature fluctuations during transit. This integrated packaging line provides a robust, multi-layer containment strategy.
Key system highlights include:
- Specialized bottle orientation and gentle handling to prevent spills and deformation
- Foam box integration for thermal insulation and shock absorption
- Horizontal stretch wrapping for secure, tamper-evident foam box sealing
- Sponge-cup vacuum gripping system for damage-free secondary insertion into outer cartons
- Collaborative robot (cobot) palletizing ensuring safe, flexible, and efficient end-of-line stacking
- Customizable footprint and modular design to accommodate various factory space constraints
The system helps veterinary pharmaceutical manufacturers achieve seamless automation, boosting throughput while safeguarding sensitive medicine products throughout harsh logistics environments.
Get a Quote for Your Veterinary Medicine Packaging Line
To help us engineer the ideal automated packaging solution for your veterinary products, please provide the following details:
Bottle dimensions and weight
Foam box dimensions and thickness
Outer carton dimensions
Required production capacity (bottles or boxes per minute)
Temperature control or cold-chain constraints
Factory layout restrictions or available space limitations
Pallet size and stacking height requirements
