Pharmaceutical Robotic End-of-Line Packaging System
Process Flow
Applications
Pharmaceutical Products
Multi-blister pharmaceutical cartons
Capsule blister cartons
Tablet blister cartons
Softgel blister cartons
OTC medicine cartons
Prescription medicine cartons
Healthcare & Medical Products
Nutraceutical cartons
Healthcare product cartons
Medical device cartons
Diagnostic kit cartons
Pre-folded Carton Type

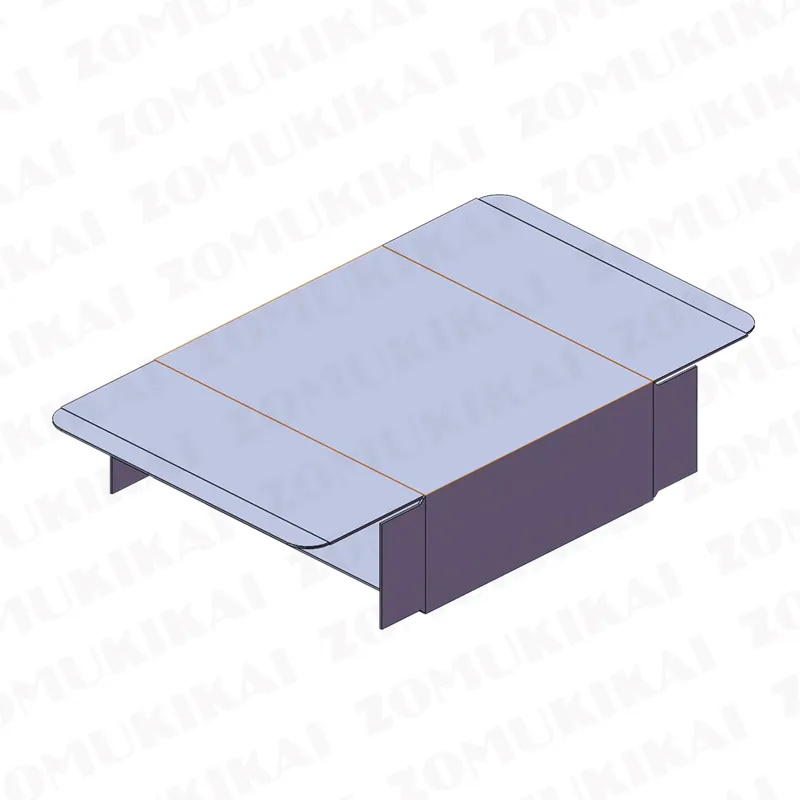

Tuck Carton

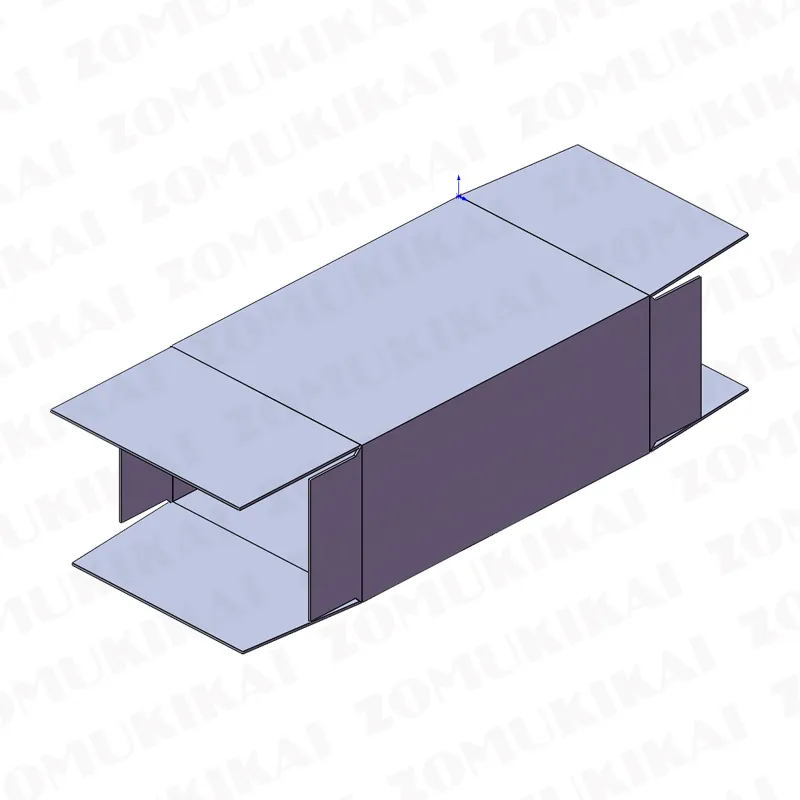

Glued Carton

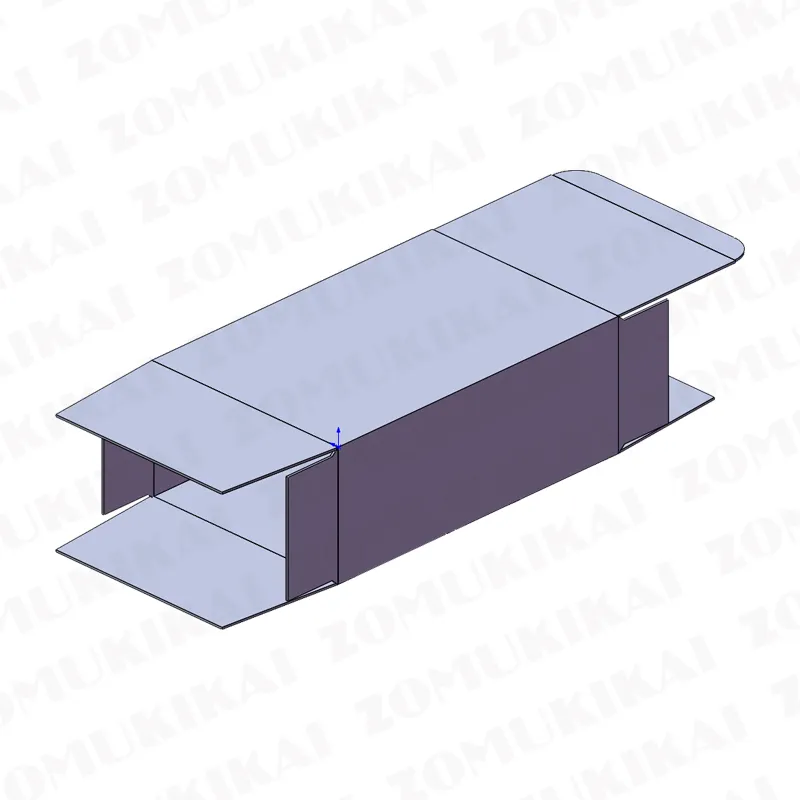

Tuck & Glued Carton

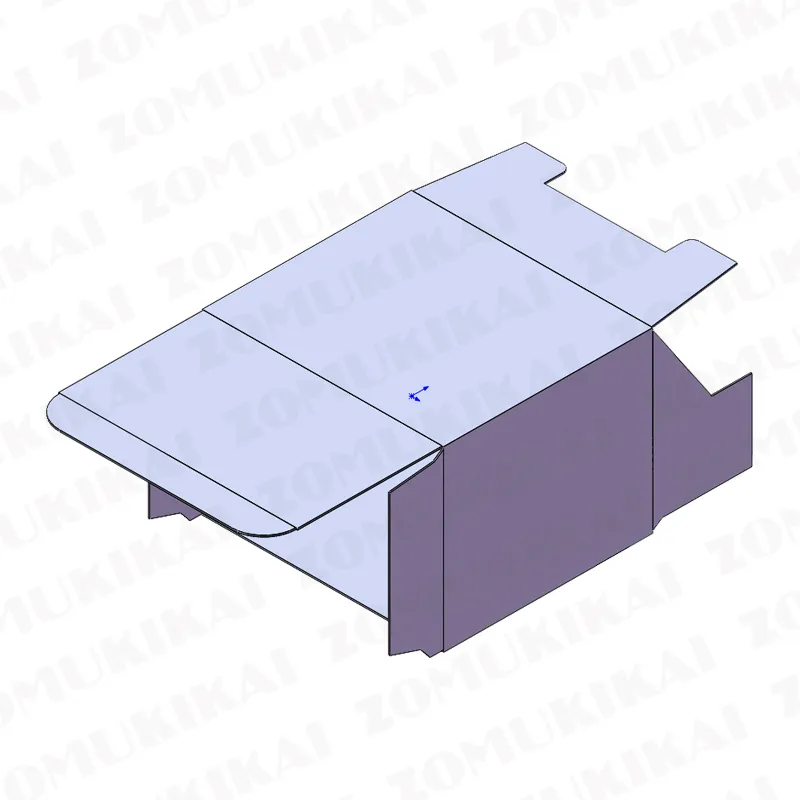

Tuck & Locked Carton

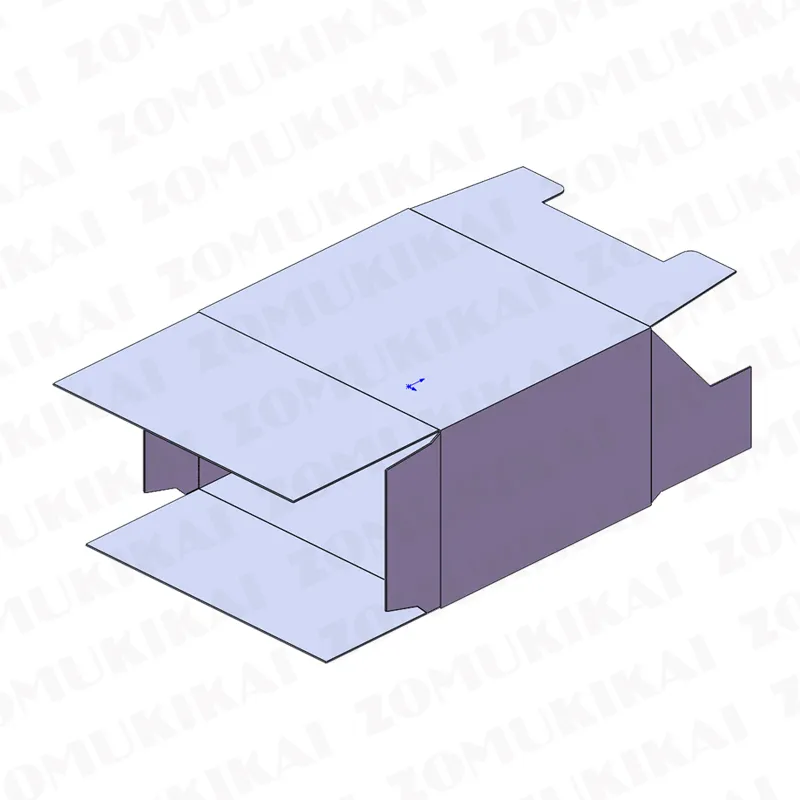

Glued & Locked Carton
How the Packaging Line Works
This integrated end-of-line packaging system is specifically designed for the pharmaceutical industry, providing automatic case packing and palletizing for pharmaceutical cartons while supporting GMP requirements.
The process begins with a blister packaging machine, where tablets, capsules or other pharmaceutical products are formed into blister packs. Multiple blister cards are then automatically inserted into pharmaceutical folding cartons through an automatic cartoning machine.
The finished cartons are transferred to the case packing section. An automatic case erector forms corrugated shipping cases and seals the bottom flaps with adhesive tape before delivering them to the robotic loading station.
An ABB industrial robot automatically picks and packs pharmaceutical cartons into shipping cases according to preset packing patterns. The robotic case packing system provides accurate handling and stable operation with a capacity of up to 6 cycles per minute.
After case packing, cartons are automatically sealed. A side labeling system applies shipping labels, identification labels, batch information and logistics labels to support product traceability.
The sealed cases are reinforced by an automatic PP strapping machine before being transferred to the robotic palletizing station. The robot palletizer arranges cases onto pallets according to programmed stacking patterns for stable storage and transportation.
The major structural components of the case erector and case sealer are manufactured from SUS304 stainless steel, providing durability, corrosion resistance and easy cleaning.
The complete system can be integrated with serialization, barcode verification, vision inspection and track-and-trace systems to support modern pharmaceutical manufacturing requirements.
Packing Line Configuration
Complete equipment configuration of the pharmaceutical robotic end-of-line packaging system:
| Section | Equipment | Main Function |
|---|---|---|
| Primary Packaging | Blister Packaging Machine | Forms blister packs for tablets, capsules and pharmaceutical products |
| Cartoning | Automatic Cartoning Machine | Inserts blister cards into pharmaceutical folding cartons |
| Case Preparation | Automatic Case Erector | Forms corrugated shipping cases and seals bottom flaps |
| Robotic Packing | ABB Robotic Case Packing System | Automatically picks and loads cartons into shipping cases |
| Case Sealing | Automatic Case Sealer | Seals filled cases for transportation |
| Labeling | Side Labeling System | Applies identification and traceability labels |
| Reinforcement | PP Strapping Machine | Reinforces cartons for logistics and storage |
| Palletizing | ABB Robotic Palletizing System | Builds stable pallet loads automatically |
GMP Compliance and Pharmaceutical Packaging Requirements
Pharmaceutical production requires reliable automation systems that meet strict hygiene, safety and traceability requirements. This robotic end-of-line packaging solution is designed with GMP-oriented principles for pharmaceutical secondary packaging environments.
Key compliance features include:
- GMP compliant machine design
- Easy-to-clean machine structure
- SUS304 stainless steel construction for major modules
- Pharmaceutical-grade electrical layout
- Safety interlock protection
- CE compliant design according to project requirements
The system can also integrate serialization and traceability solutions, including barcode verification, vision inspection and track-and-trace systems, helping pharmaceutical manufacturers improve production control and product identification accuracy.
Get a Quote for Your Pharmaceutical Packaging System
To recommend the most suitable pharmaceutical robotic end-of-line packaging solution, please provide the following production details:
Product type (tablet / capsule / softgel / medical device / nutraceutical)
Carton dimensions
Carton weight
Required production capacity
Current blister packaging and cartoning equipment
Case dimensions
Required packing pattern
Pallet dimensions
Maximum palletizing height
Serialization and traceability requirements
Factory layout or production line drawing
