Side-Load Case Packing Machine: Working Principle, Benefits & Engineering Guide

What is a Side-Load Case Packing Machine? Definition & Structural Mechanics

First, let’s define the technology: what is a side-load case packing machine? Also known as a horizontal case packer, a side-load case packing machine is an automated packaging system that collates products and pushes them horizontally (from the side) into an erected corrugated shipping case that is open on its side. Unlike top-load systems that drop products vertically, side-load systems maintain constant horizontal control over the product throughout the entire loading cycle.

Advanced automatic side-load case packing machines are engineered specifically to handle rigid products with flat surfaces, such as small carton boxes, tissue boxes, rectangular trays, and books. By eliminating gravity-dependent dropping, this architecture offers unprecedented stability for high-speed, tight-clearance case packing operations.

Horizontal Case Packer vs. Top-Load: When to Choose Side-Loading?

To make an informed decision for your facility, it is essential to understand why packaging engineers prefer horizontal side-load case packers over vertical top-load alternatives for specific applications. The choice comes down to three major engineering factors:

• Zero Drop Damage for Fragile Products – Top-load packers rely on dropping or vacuum-lowering products into a deep case, which can cause internal damage or product shifting. Horizontal side-load packers smoothly slide products into the case on a single horizontal plane, completely eliminating impact forces.
• Tighter Case Clearance & Material Savings – Pushing products horizontally allows the machine to pack items with tightly toleranced clearances inside the shipping carton. This ensures a snug fit, prevents product friction during transit, and reduces the overall consumption of expensive corrugated materials.
• Compact Spatial Footprint – Side-load case packing systems typically feature a linear, low-profile mechanical footprint. Because they do not require massive overhead gantry pick-and-place robots, they integrate seamlessly into factories with low ceilings or limited floor space.

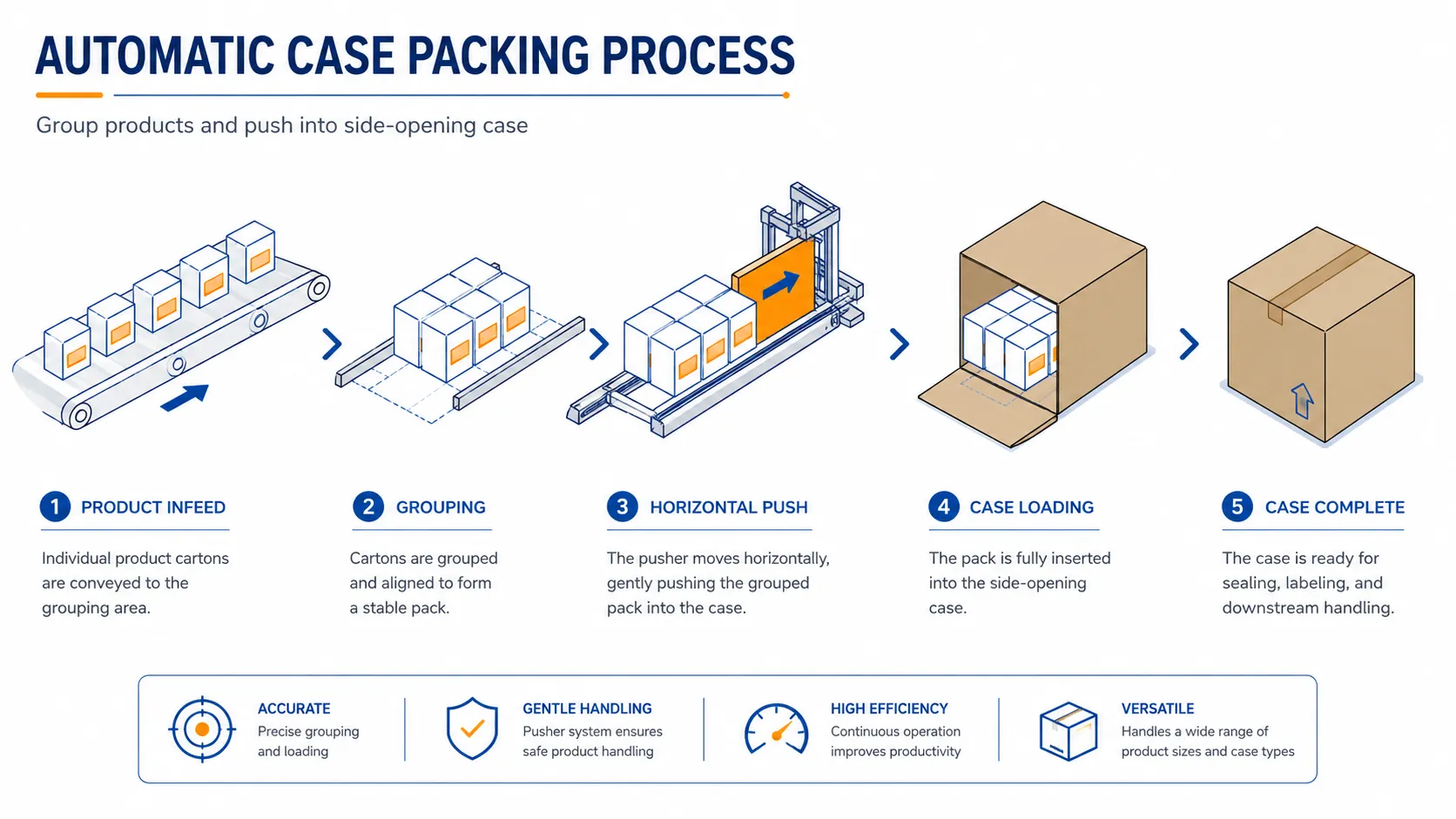

How Does a Side-Load Case Packer Work? Step-by-Step Operational Flow

Understanding how a horizontal case packer works clarifies why it delivers such consistent end-of-line packaging performance. The automated cycle follows a precise, servo-driven mechanical sequence:

• Step 1: Horizontal Case Erecting – The machine pulls a flat case blank from the magazine using vacuum suction cups. Instead of opening it vertically, the mechanical arm opens the case horizontally, folds the leading bottom and side flaps, and holds it securely in the loading station.
• Step 2: Product Collating & Layering – Products arriving from the upstream conveyor line are grouped, stacked, or layered according to the pre-programmed packing pattern (e.g., 2x3 or 4x5 matrices) using precision servo grouping lanes.
• Step 3: Side-Load Pushing & Sealing – Once the product matrix is formed, a mechanical pusher cylinder smoothly moves the entire bundle horizontally into the waiting case. The filled case then advances to the sealing station, where the side flaps are securely taped or glued with hot-melt adhesives without turning the case over.

Key Technical Features to Look For in a Side-Load Case Packing System

When selecting a side-load case packer for your factory floor, look for specific technical configurations that ensure long-term reliability and fast ROI:

• Full Servo-Driven Architecture – Replaces high-maintenance pneumatic cylinders with servo motors for case erecting, collating, and pushing, ensuring zero friction, low noise, and spark-free precision.
• Toolless Fast Changeover – Quick-adjust handles and digital position indicators allow operators to switch the machine settings to handle different carton box or case sizes in under 15 minutes without external tools.
• Integrated Safety Interlocks – Enclosed heavy-duty SUS304 frames equipped with safety limit switches that immediately pause operation if a protective door is opened during a high-speed cycle.

FAQs: Answering Your Top Questions About Side-Load Packaging

• Q: What types of products are best suited for side-load case packers? A: Side-load packers excel at handling regular-shaped items with structural integrity, such as pharmaceutical cartons, cosmetic boxes, food trays, and flat-packaged consumer goods.
• Q: Can a side-load case packer handle varying box tolerances? A: Yes. Advanced models feature mechanical side guides and servo compensation to smoothly handle minor variations in corrugated shipping box thickness or moisture-induced warping.
• Q: Is it easy to integrate with upstream machinery? A: Absolutely. These systems are natively designed to connect seamlessly with upstream cartoning machines, flow wrappers, and downstream palletizing systems to establish a fully automated end-of-line solution.
