Cobot Palletizer Machine
How Does the Cobot Palletizer Work?
Specifications
| Model | ZC-P1800 |
|---|---|
| Machine Type | Cobot Palletizer (Collaborative Robot Palletizing System) |
| Operating Speed | 8–10 cycles/minute (depending on product characteristics) |
| Maximum Pallet Size | 1200 × 1200 mm |
| Pallet Placement | Manual pallet loading, one pallet on the left and one pallet on the right |
| Maximum Payload | 30 kg (including gripper/end effector) |
| Maximum Palletizing Height | 2000–2200 mm (depending on carton dimensions) |
| Total Power | 2 kW |
| Power Supply | 220V, 50Hz |
| Control Voltage | DC 24V |
| Compressed Air Requirement | Minimum 0.7 m³/minute (air supply provided by customer) |
| Electrical Requirements | Power cable: Live, Ground, Neutral ≥ 2.5 mm²; Power capacity: 2 kVA |
| Machine Weight | 400 kg |
| Protection Rating | Equivalent to IP54 |
Sample Testing Service
Test your Cobot Palletizer Machine and cartons to find the best packing method and avoid errors.
We can also source suitable cartons locally in China to save shipping cost.
Customer Service
We provide attentive, customized solutions at every stage: pre-sales, in-sales, and after-sales.
24/7 online support and training are available in over 30 countries to keep your production efficient.
Overview

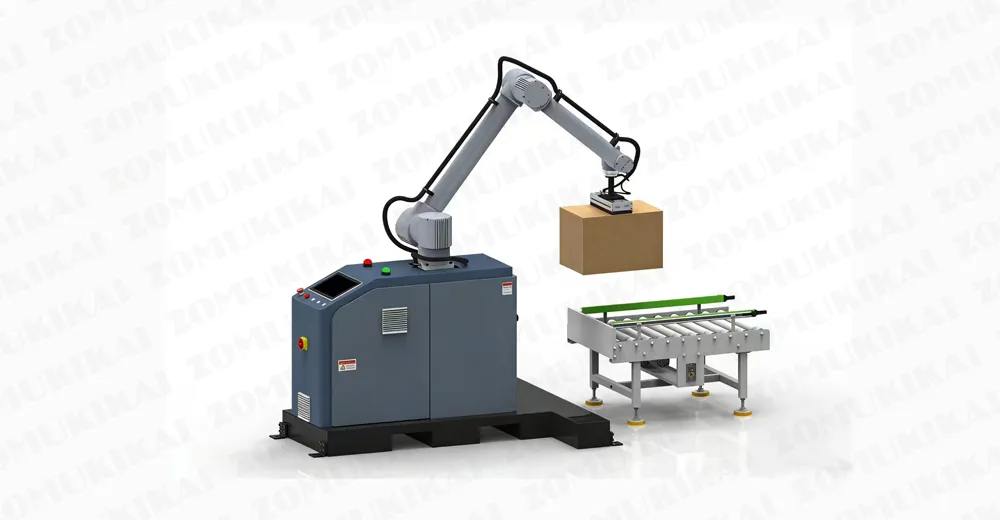

The ZC-P1800 Cobot Palletizer is an advanced collaborative robot palletizing system designed to automate carton, case and packaged product stacking operations. It transfers products from conveyors and accurately arranges them onto pallets according to predefined palletizing patterns.
The system integrates a collaborative robotic arm with intelligent torque sensing technology and 10-level collision detection, ensuring safe operation in shared working environments without traditional safety fencing. This human-machine collaboration design provides greater flexibility for factories with limited production space or frequently changing production requirements.
The ZC-P1800 supports multiple palletizing recipes through a user-friendly control interface, allowing operators to quickly switch between different products, pallet sizes and stacking patterns. Its compact footprint and flexible mobility make installation and relocation easier compared with traditional palletizing systems.

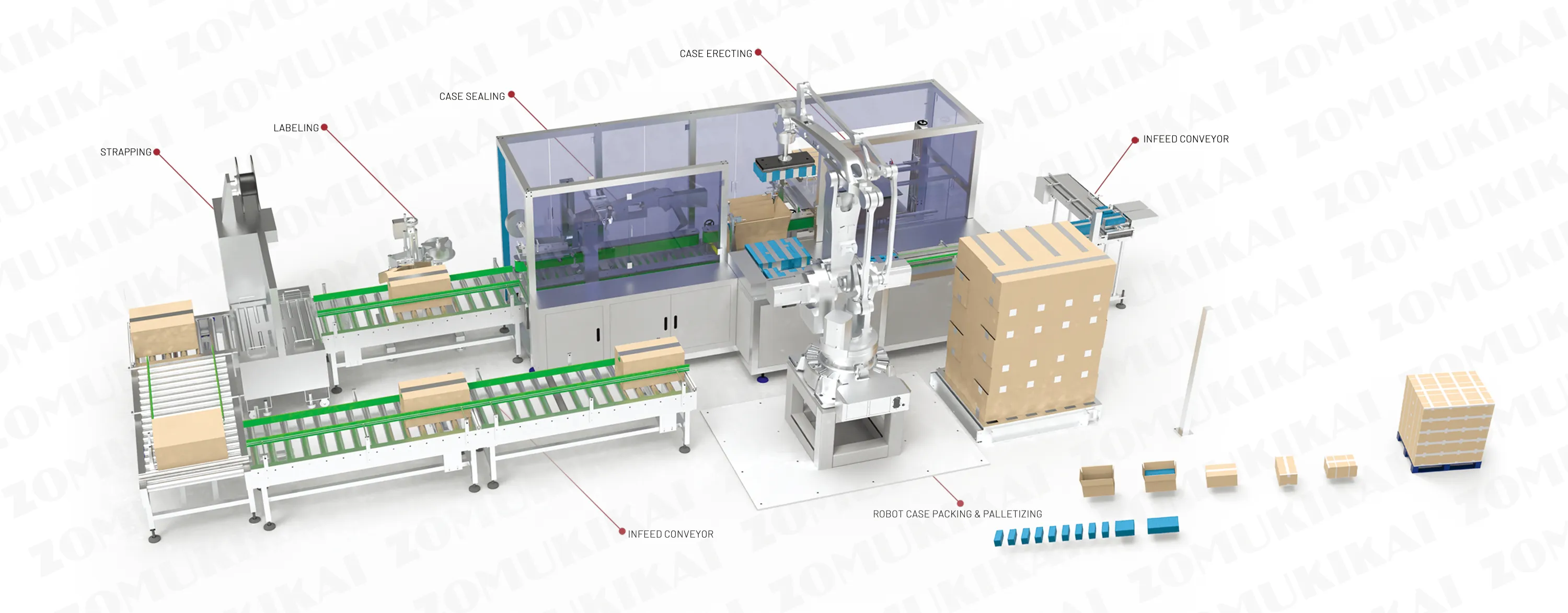

With low energy consumption, reliable servo control and customizable end-of-arm tooling options, the cobot palletizer can be integrated with conveyors, case packers and other packaging equipment to create efficient end-of-line automation solutions.
- Collaborative robot palletizing system with safe human-machine interaction.
- 10-level collision detection based on torque sensing technology.
- No safety fencing required for flexible production environments.
- Supports multiple palletizing recipes and quick product changeovers.
- Compact footprint with easy relocation capability.
- Low energy consumption and reduced operating costs.
- Compatible with cartons, cases, trays and packaged products.
The ZC-P1800 Cobot Palletizer is widely used in food, beverage, pharmaceutical, household chemical, consumer goods and industrial packaging industries where flexible and safe automatic palletizing is required.
Why Choose Us
Manual
- ✘ High labor cost and repetitive manual pallet stacking
- ✘ Large safety space requirements for traditional robots
- ✘ Difficult product changeovers
- ✘ Limited factory space
Automatic Case Packing
- ✔ Collaborative robot palletizing reduces manual workload while improving efficiency
- ✔ No safety fencing required with intelligent collision detection
- ✔ Quick recipe switching through user-friendly programming interface
- ✔ Compact footprint and flexible installation
