Vision-Guided Delta Robot Case Packer

The ZC-PP500 Delta Robot Case Packer combines high-speed vision guidance and spider robot pick-and-place technology to automate precise loading of bags and irregular products into corrugated cartons with maximum flexibility and efficiency.

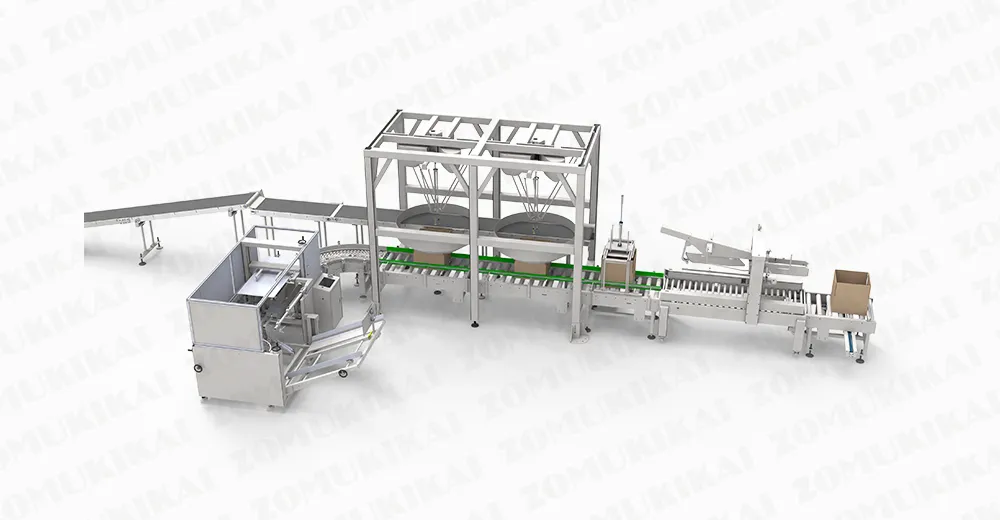

ZC-PP500 Vision-Guided Delta Spider Robot Case Packer by ZOMUKIKAI

How Does the ZC-PP500 Spider Robot Case Packer Work?

Case Erecting

Vision Product Detection

Spider Arm Pick into Case

Case Sealing

Case Erecting

Vision Product Detection

Spider Arm Pick into Case

Case Sealing

Applications

Food Products

snack pouches

bakery products

chocolate packs

sauce sachets

frozen food bags

Pharmaceutical & Medical

IV bags

face mask packs

blister packs

medicine pouches

Daily Chemical & Cosmetics

wet wipe packs

shampoo sachets

cosmetic samples

detergent pouches

Specifications

ZC Model	ZC-PP500
Machine Type	Vision-Guided Delta (Spider) Robot Case Packer
Capacity	8 cases/min (depends on bag size and weight)
Applicable Corrugated Carton Size	(220–550) × (150–400) × (120–400) mm
Power	15 kW
Air Consumption	6 m³/hour
Main Materials	304 stainless steel

Sample Testing Service

Test your Vision-Guided Delta Robot Case Packer and cartons to find the best packing method and avoid errors.

We can also source suitable cartons locally in China to save shipping cost.

See testing guide

Customer Service

We provide attentive, customized solutions at every stage: pre-sales, in-sales, and after-sales.

24/7 online support and training are available in over 30 countries to keep your production efficient.

See service details

Brochure

Overview

The ZC-PP500 Delta Robot Case Packer by ZOMUKIKAI is a high-speed, fully automatic secondary packaging system integrating Delta robot technology (widely known as a spider robot), machine vision guidance, dynamic conveyor tracking, and robotic case packing into one intelligent solution.

Using industrial cameras and advanced image-processing software, the machine identifies the exact position, orientation, and movement of products traveling on the conveyor. The spider arm robot then tracks the moving products in real time, picks them with precision, and places them into corrugated cartons according to the programmed packing pattern.

Handles randomly oriented and irregular products
Ideal for soft, fragile, and difficult-to-stack packaging
Dynamic conveyor tracking for non-stop picking

Powered by lightweight high-speed parallel robot arms (spider robot architecture) and intelligent motion control, the ZC-PP500 achieves extremely fast and smooth pick-and-place operation while maintaining gentle handling for delicate products.

Why Choose Robotic Case Packing over Traditional Mechanical Packers? Compared with traditional mechanical drop or side-load case packers, the ZC-PP500 spider robot system offers significantly higher flexibility and faster recipe-based changeovers. It drastically reduces product damage for fragile items and improves overall packing accuracy. Furthermore, the overhead-mounted Delta robot structure minimizes floor space usage, allowing for seamless integration into existing, space-constrained production lines.

This machine is widely trusted in the food, pharmaceutical, medical, and daily chemical industries where high-speed, precise robotic case packing of bags, sachets, and irregular products is strictly required.

Why Choose Us

Manual

✘ Limited speed and inconsistent manual output
✘ Difficult to orient and arrange irregular products consistently
✘ High risk of product deformation, crushing, or unstable packing
✘ Slow adaptation to different products and packing patterns

Automatic Case Packing

✔ High-speed spider robot picking with continuous conveyor tracking
✔ Vision-guided robot automatically detects and positions products accurately
✔ Gentle robotic handling reduces product damage and improves packing consistency
✔ Recipe-based adjustment enables fast product changeover with minimal manual intervention

FAQ

What is a Vision-Guided Delta Robot Case Packer? +

A Vision-Guided Delta Robot Case Packer is a high-speed, fully automatic secondary packaging system that integrates parallel robot kinematics with machine vision. Often referred to in the industry as a spider arm robot or spider robot, it uses industrial cameras to detect the exact position, orientation, and movement of randomly oriented, soft, or irregular products on a moving conveyor. The delta arm then dynamically tracks, picks, and gently places these items into corrugated cartons according to programmed packing patterns, ensuring high flexibility and zero product damage.

What products are suitable for the ZC-PP500? +

The machine is perfectly suited for bags, pouches, flexible packaging, and irregular products in the food, pharmaceutical, medical, and daily chemical industries.

What is the advantage of the Delta (spider arm) robot system? +

The Delta robot, frequently called a spider arm robot, provides ultra-high-speed motion, precise pick-and-place operation, smooth product handling, and excellent flexibility for irregular products.

How does the machine vision system work? +

Industrial cameras detect the product’s position, orientation, and movement direction. The robot then automatically adjusts its picking path and rotation angle in real time.

Can the machine pick products from a moving conveyor? +

Yes. The machine uses dynamic conveyor tracking technology, allowing products to be picked directly from a continuously moving conveyor without stopping production.

Is the machine suitable for fragile products? +

Absolutely. The robotic pick-and-place system utilizes customized vacuum suction cups or soft grippers, providing exceptionally gentle handling for delicate products.

Get a Quote for Your Delta Robot Case Packer

To configure the correct ZOMUKIKAI ZC-PP500 robotic system and provide an accurate quotation, please share the following details:

Product photos and dimensions

Product weight

Corrugated carton size (L × W × H)

Packing pattern (rows × columns × layers)

Required capacity (picks/min or cases/min)
